C43 AMG Crankshaft Position Sensor Replacement DIY

Late last week my car started refusing to start when I cranked it over. It would always eventually start, but there was no pattern as to why or when it would refuse. It cranked well, but it just seemed like it wasn't getting any fuel. Then, five minutes later it would start as if nothing had happened. This car has a unique electronic ignition that is *basically* totally idiot-proof. The driver is supposed to turn the ignition and then let go of the key completely. The car does the rest.
So, when it fails to start, there's nothing to fiddle with. It just won't start. And, being an automatic, you can't exactly get it rolling and pop the clutch. Being reluctant to take the car to the dealer, I sat down in front of my laptop and hunted around in the Mercedes WorkstationInformationSystem (WIS) program and out popped the solution: Replace the Crankshaft Position Sensor. Apparently the CPS controls timing and fuel delivery, and when it goes, the car's computer stops firing cylinders and stops delivering fuel.

The part itself is relatively inexpensive ($150.00) and pretty easy to replace. In fact, it's easier than a spark plug. You just have to know a few tricks. Here's my Do-It-Yourself guide with pictures:

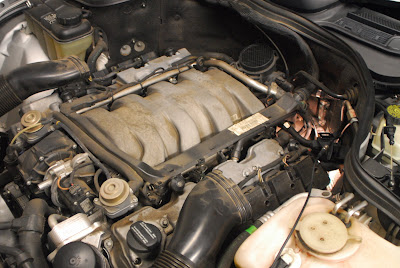

1. On my '99 C43 AMG (engine based on the E-Class 4.3 ltr V-8), the CPS sits between the block and the firewall, on the crankshaft housing. A small electrical wire leads to the "D" shaped sensor from the top of the engine. To get there, you have to remove the air filter box. On the C43, there are two very obvious air intake tubes that lead to the air filter box that sits on top of the block. The air intake tubes pull apart from the filter box by hand. The air filter box lifts directly up with gentle pulling pressure at the front corners. Here's what it look like with the filter box removed:

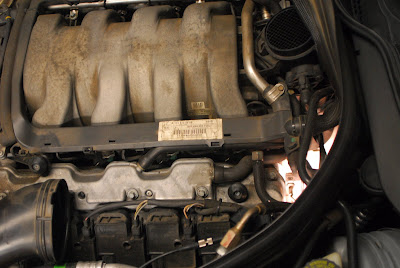

The area to the back right (illuminated) is where the CPS is located. Here's a shot of that area:

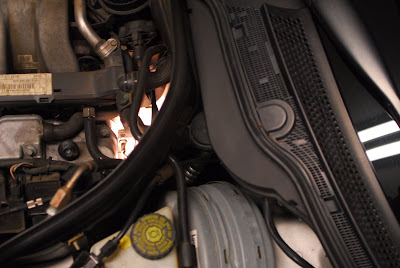

And a different version, to give you a slightly better idea of where this little item resides:

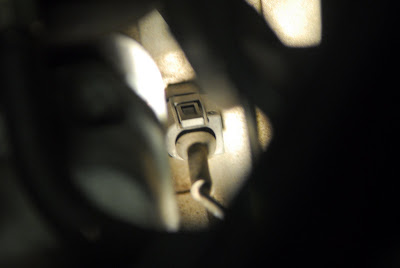

Here's a picture of the offender in it's natural habitat:

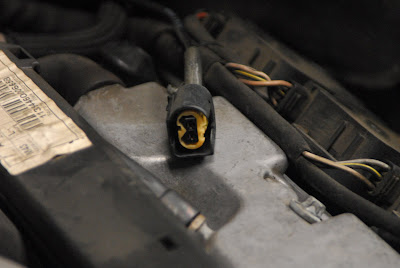

Before you can remove the CPS itself, remove the electrical wire. Push down on the small flange with your thumb and the connector will easily pull back. Here's what the CPS connecting wire looks like removed:

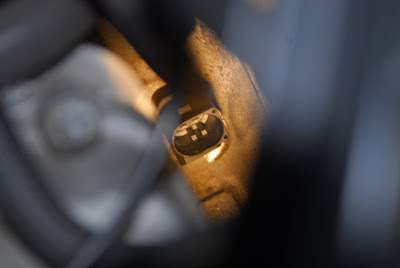

And here's what the CPS itself looks like with the connector removed. Again in it's location:

O.K., here's the catch, the WIS and the MB forums I looked at all indicate that the bolt used to secure the CPS to the crankshaft housing is a Torx screw. Some even indicate you could use an Allen Key in place of a Torx driver. NOT ON THIS CAR. And here's the tricky part. There is NO WAY TO SEE THE SCREW. I stuck my hand into the cavity and grabbed the CPS, but because it is fastened by a small screw that is out of sight, you cannot tell what tool you need. I had to go grab a cosmetic mirror, attach it to a coat hanger to find that I needed a torx driver, not a torx bit to remove the screw. Here's what that piece looks like once it's removed:

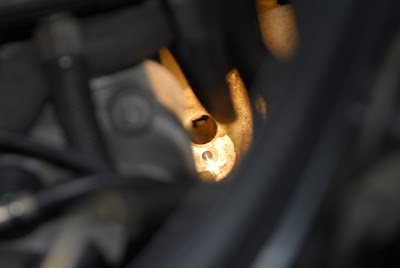

Without a doubt, finding this screw, and getting the torx driver on to the screw head was the hardest part of this whole job. It takes patience. And if you drop your tool, you're in a heap of trouble. It'll fall into the engine cavity and be lost. Here's a picture of the hole for the new CPS:

Putting the new CPS in place is simple. It fits perfectly in the hole. Slide it in, leaving the electrical connection for later. Line up the screw hole and re-tighten the torx screw, manually tighten it. You won't be able to get it very tight, because the area is so cramped. You're not supposed to be able to get it too tight. Click the electrical connection back in place, install the air filter box - making certain you make the connection between the filter box and the fixed intake nice and snug (it's easy) and, maneuver the air intake tubes back into place and you're done. The only thing missing in this photo is the plastic vanity shield that fits in front of the filter box:

Hope that helps.
